Engine d. 40 mm FS 110 RX-Z

Engine d. 40 mm Brushcutters (FS) FS 110 RX-Z Stihl

Manufacturer: STIHL

When ordering original spare parts for your product Brushcutters (FS) FS 110 RX-Z of Stihl, to allow our staff to send you the correct spare parts,enter the year of the machine and, if available, its serial number in the Miscellaneous Notes field on the final page of the cart.

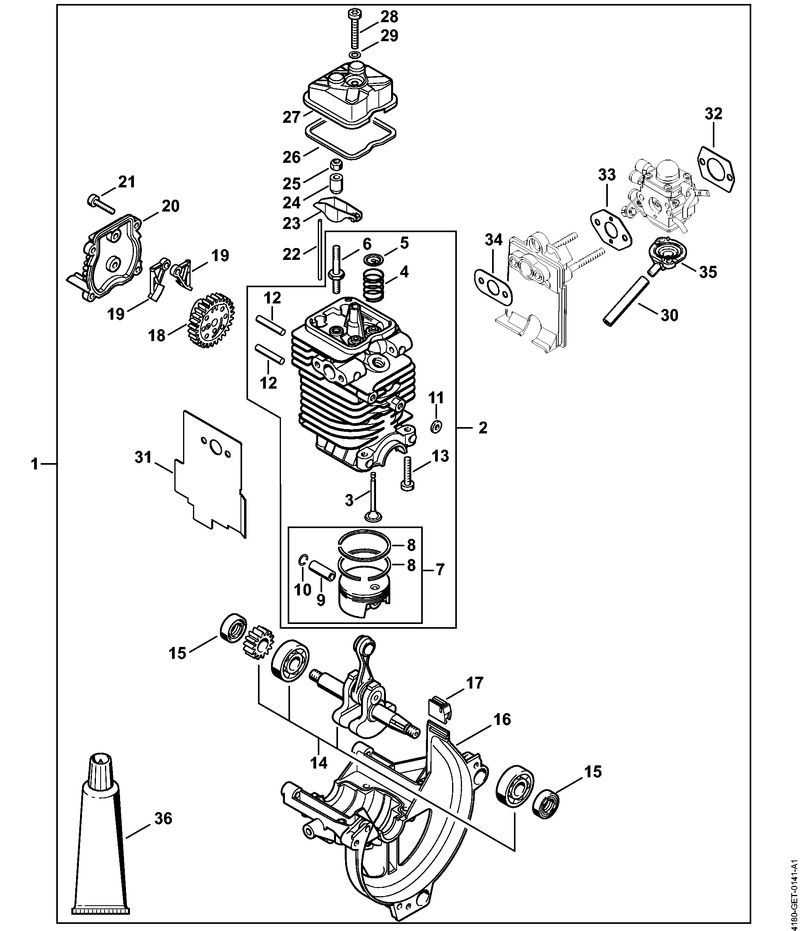

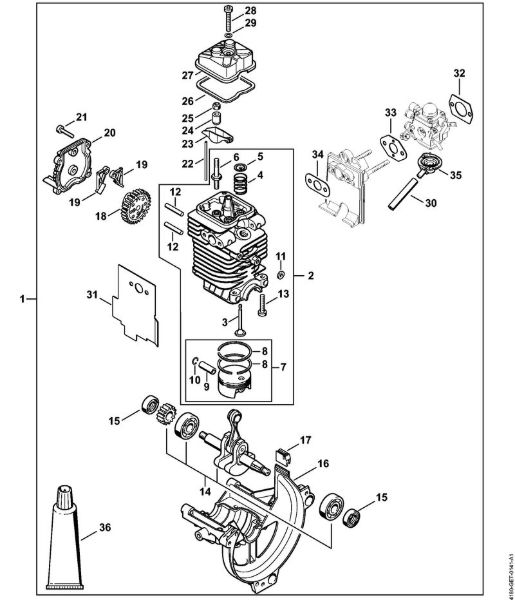

1 Engine diam. 40 mm

Original spare parts Engine diam. 40 mm Brushcutters (FS) FS 110 RX-Z Stihl Included from nr. 2 to 36

€353.23 incl tax

Qty:

2 Cylinder with piston diam. 40 mm

Original spare parts Cylinder with piston diam. 40 mm Brushcutters (FS) FS 110 RX-Z Stihl Included from nr. 3 to 13

€258.37 incl tax

Qty:

3 Valve

Original spare parts Valve Brushcutters (FS) FS 110 RX-Z Stihl

€20.95 incl tax

Qty:

4 Valve spring

Original spare parts Valve spring Brushcutters (FS) FS 110 RX-Z Stihl

€4.39 incl tax

Qty:

5 Spring retainer plate

Original spare parts Spring retainer plate Brushcutters (FS) FS 110 RX-Z Stihl

€3.81 incl tax

Qty:

6 Collar screw M5

Original spare parts Collar screw M5 Brushcutters (FS) FS 110 RX-Z Stihl

€6.98 incl tax

Qty:

7 Piston diam. 40 mm

Original spare parts Piston diam. 40 mm Brushcutters (FS) FS 110 RX-Z Stihl Included from nr. 8 to 10

€94.12 incl tax

Qty:

8 Piston ring diam. 40x1.2 mm

Original spare parts Piston ring diam. 40x1.2 mm Brushcutters (FS) FS 110 RX-Z Stihl

€18.79 incl tax

Qty:

9 Piston pin 8x5x22

Original spare parts Piston pin 8x5x22 Brushcutters (FS) FS 110 RX-Z Stihl

€15.68 incl tax

Qty:

10 Snap ring 8x0.7

Original spare parts Snap ring 8x0.7 Brushcutters (FS) FS 110 RX-Z Stihl

€2.15 incl tax

Qty:

11 Washer

Original spare parts Washer Brushcutters (FS) FS 110 RX-Z Stihl

€3.22 incl tax

Qty:

12 Pin 5x26.5

Original spare parts Pin 5x26.5 Brushcutters (FS) FS 110 RX-Z Stihl

€7.91 incl tax

Qty:

13 Pan head self-tapping screw IS-D5x24

Original spare parts Pan head self-tapping screw IS-D5x24 Brushcutters (FS) FS 110 RX-Z Stihl

€3.22 incl tax

Qty:

14 Crankshaft

Original spare parts Crankshaft Brushcutters (FS) FS 110 RX-Z Stihl

€237.29 incl tax

Qty:

15 Oil seal 12x22x7

Original spare parts Oil seal 12x22x7 Brushcutters (FS) FS 110 RX-Z Stihl

€11.74 incl tax

Qty:

16 Engine pan

Original spare parts Engine pan Brushcutters (FS) FS 110 RX-Z Stihl

€33.75 incl tax

Qty:

17 Grommet

Original spare parts Grommet Brushcutters (FS) FS 110 RX-Z Stihl

€5.51 incl tax

Qty:

18 Cam wheel

Original spare parts Cam wheel Brushcutters (FS) FS 110 RX-Z Stihl

€15.62 incl tax

Qty:

19 Cam follower

Original spare parts Cam follower Brushcutters (FS) FS 110 RX-Z Stihl

€21.56 incl tax

Qty:

20 Cover

Original spare parts Cover Brushcutters (FS) FS 110 RX-Z Stihl

€16.53 incl tax

Qty:

21 Pan head self-tapping screw IS-D4x18

Original spare parts Pan head self-tapping screw IS-D4x18 Brushcutters (FS) FS 110 RX-Z Stihl

€2.68 incl tax

Qty:

22 Pushrod

Original spare parts Pushrod Brushcutters (FS) FS 110 RX-Z Stihl

€5.47 incl tax

Qty:

23 Rocker arm

Original spare parts Rocker arm Brushcutters (FS) FS 110 RX-Z Stihl

€7.76 incl tax

Qty:

24 Sleeve

Original spare parts Sleeve Brushcutters (FS) FS 110 RX-Z Stihl

€8.49 incl tax

Qty:

25 Lock nut M5

Original spare parts Lock nut M5 Brushcutters (FS) FS 110 RX-Z Stihl

€3.12 incl tax

Qty:

26 Gasket

Original spare parts Gasket Brushcutters (FS) FS 110 RX-Z Stihl

€4.68 incl tax

Qty:

27 Valve cover

Original spare parts Valve cover Brushcutters (FS) FS 110 RX-Z Stihl

€14.49 incl tax

Qty:

28 Spline screw IS-M5x30

Original spare parts Spline screw IS-M5x30 Brushcutters (FS) FS 110 RX-Z Stihl

€3.76 incl tax

Qty:

29 Sealing ring 5x9x1

Original spare parts Sealing ring 5x9x1 Brushcutters (FS) FS 110 RX-Z Stihl

€1.56 incl tax

Qty:

30 Impulse hose

Original spare parts Impulse hose Brushcutters (FS) FS 110 RX-Z Stihl

€10.83 incl tax

Qty:

31 Muffler gasket

Original spare parts Muffler gasket Brushcutters (FS) FS 110 RX-Z Stihl

€13.15 incl tax

Qty:

32 Gasket

Original spare parts Gasket Brushcutters (FS) FS 110 RX-Z Stihl

€4.25 incl tax

Qty:

33 Gasket

Original spare parts Gasket Brushcutters (FS) FS 110 RX-Z Stihl

€6.10 incl tax

Qty:

34 Gasket

Original spare parts Gasket Brushcutters (FS) FS 110 RX-Z Stihl

€6.10 incl tax

Qty:

36 Sealant, Dirko HT red

Original spare parts Sealant, Dirko HT red Brushcutters (FS) FS 110 RX-Z Stihl

€25.18 incl tax

Qty:
