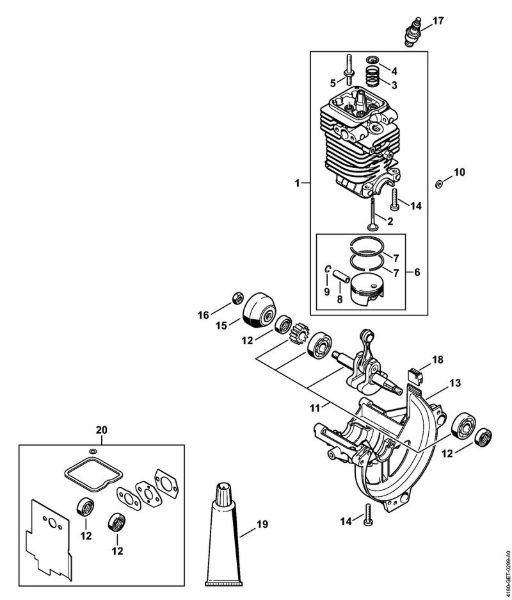

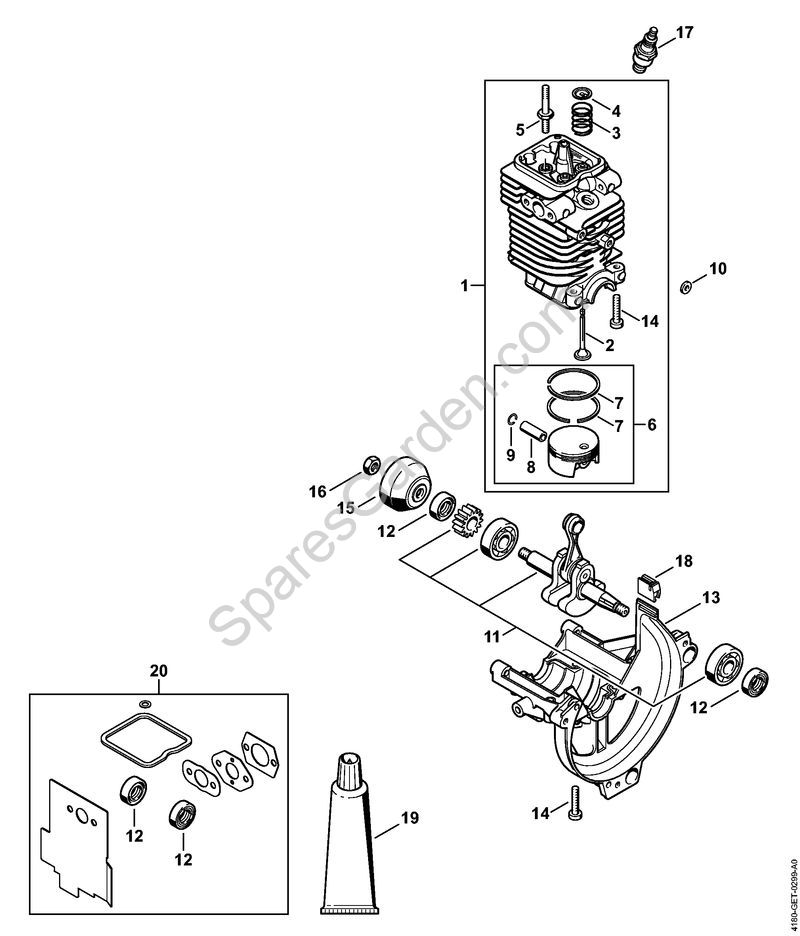

Cylinder, Engine pan Brushcutters (FS) FS 90 - 4180 Stihl

Cylinder, Engine pan FS 90 - 4180

Cylinder, Engine pan Brushcutters (FS) FS 90 - 4180 Stihl
Manufacturer: STIHL

When ordering original spare parts for your product Brushcutters (FS) FS 90 - 4180 of Stihl, to allow our staff to send you the correct spare parts,enter the year of the machine and, if available, its serial number in the Miscellaneous Notes field on the final page of the cart.

1 Cylinder with piston diam. 38 mm

Original spare parts Cylinder with piston diam. 38 mm Brushcutters (FS) FS 90 - 4180 Stihl Included from nr. 2 a 9 e 14
€198.08 incl tax

2 Valve

Original spare parts Valve Brushcutters (FS) FS 90 - 4180 Stihl
€20.95 incl tax

3 Valve spring

Original spare parts Valve spring Brushcutters (FS) FS 90 - 4180 Stihl
€4.39 incl tax

4 Spring retainer plate

Original spare parts Spring retainer plate Brushcutters (FS) FS 90 - 4180 Stihl
€3.81 incl tax

5 Collar screw M5

Original spare parts Collar screw M5 Brushcutters (FS) FS 90 - 4180 Stihl
€6.98 incl tax

6 Piston diam. 38 mm

Original spare parts Piston diam. 38 mm Brushcutters (FS) FS 90 - 4180 Stihl Included from nr. 7 to 9
€76.83 incl tax

7 Piston ring diam. 38x1.2 mm

Original spare parts Piston ring diam. 38x1.2 mm Brushcutters (FS) FS 90 - 4180 Stihl
€16.56 incl tax

8 Piston pin 8x5x22

Original spare parts Piston pin 8x5x22 Brushcutters (FS) FS 90 - 4180 Stihl
€15.68 incl tax

9 Snap ring 8x0.7

Original spare parts Snap ring 8x0.7 Brushcutters (FS) FS 90 - 4180 Stihl
€2.15 incl tax

10 Washer

Original spare parts Washer Brushcutters (FS) FS 90 - 4180 Stihl
€3.22 incl tax

11 Crankshaft

Original spare parts Crankshaft Brushcutters (FS) FS 90 - 4180 Stihl
€237.29 incl tax

12 Oil seal 12x22x7

Original spare parts Oil seal 12x22x7 Brushcutters (FS) FS 90 - 4180 Stihl
€11.74 incl tax

13 Engine pan

Original spare parts Engine pan Brushcutters (FS) FS 90 - 4180 Stihl
€33.75 incl tax

14 Pan head self-tapping screw IS-D5x24

Original spare parts Pan head self-tapping screw IS-D5x24 Brushcutters (FS) FS 90 - 4180 Stihl
€3.22 incl tax

15 Starter cup

Original spare parts Starter cup Brushcutters (FS) FS 90 - 4180 Stihl
€22.39 incl tax

16 Hexagon nut M8x1

Original spare parts Hexagon nut M8x1 Brushcutters (FS) FS 90 - 4180 Stihl
€2.29 incl tax

17 Spark plug Bosch USR7AC

Original spare parts Spark plug Bosch USR7AC Brushcutters (FS) FS 90 - 4180 Stihl
€13.21 incl tax

18 Grommet

Original spare parts Grommet Brushcutters (FS) FS 90 - 4180 Stihl
€5.51 incl tax

19 Sealant, Dirko HT red

Original spare parts Sealant, Dirko HT red Brushcutters (FS) FS 90 - 4180 Stihl
€25.18 incl tax

20 Set of gaskets

Original spare parts Set of gaskets Brushcutters (FS) FS 90 - 4180 Stihl Included nr. 12
€22.84 incl tax
