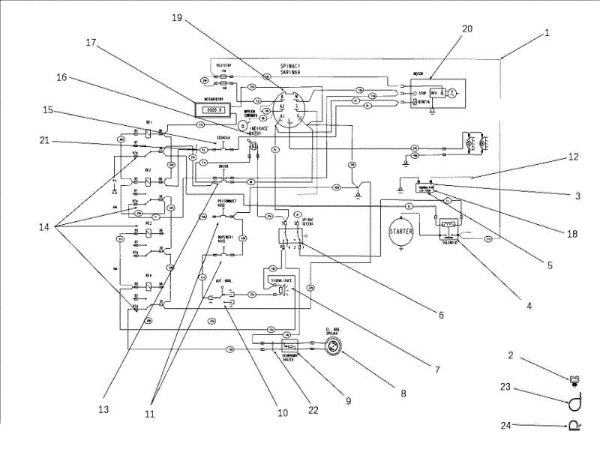

Electric diagram OM 105J/22H Cat.2010 Garden tractor (only for the German market)

Name: Electric diagram OM 105J/22H Cat.2010 Garden tractor(only for the German market)
Brand: OLEOMAC
SKU: 3699125
Availability: InStock
Rating: 5.0 (1 reviews)

Garden tractors OM 105J/22H Cat.2010 Garden tractor (only for the German market) Electric diagram Brand Oleo-Mac

Manufacturer: OLEOMAC

In case of spare parts order of OM 105J/22H Cat.2010 Garden tractor (only for the German market) brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p

Overview
Contact Us

Your name *

Your email *

Enquiry *

1 Wiring

Spare Part Wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€659.72 incl tax

Qty:

2 Cap

Spare Part Cap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 6

€20.02 incl tax

Qty:

3 Battery

Spare Part Battery Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€331.55 incl tax

Qty:

4 Solenoid

Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€56.72 incl tax

Qty:

5 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€11.37 incl tax

Qty:

6 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€65.73 incl tax

Qty:

7 Shoe

Spare Part Shoe Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€25.08 incl tax

Qty:

8 Clutch

Spare Part Clutch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€686.25 incl tax

Qty:

9 Diode

Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€25.24 incl tax

Qty:

10 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€12.35 incl tax

Qty:

11 Switch grassbag

Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2

€55.76 incl tax

Qty:

12 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€15.92 incl tax

Qty:

13 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€67.59 incl tax

Qty:

14 Starter relay

Spare Part Starter relay Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4

€27.09 incl tax

Qty:

15 Micro-switch

Spare Part Micro-switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€41.24 incl tax

Qty:

16 Warning light

Spare Part Warning light Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€36.43 incl tax

Qty:

17 Counter

Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€204.55 incl tax

Qty:

18 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€15.92 incl tax

Qty:

19 Switch box

Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€71.57 incl tax

Qty:

20 Cable

Spare Part Cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€24.32 incl tax

Qty:

22 Bushing

Spare Part Bushing Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1

€4.83 incl tax

Qty:

23 Strap

Spare Part Strap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 8

€0.63 incl tax

Qty:

24 Mount

Spare Part Mount Electric diagram Garden tractors Brand Oleo-Mac

€3.46 incl tax

Qty:
