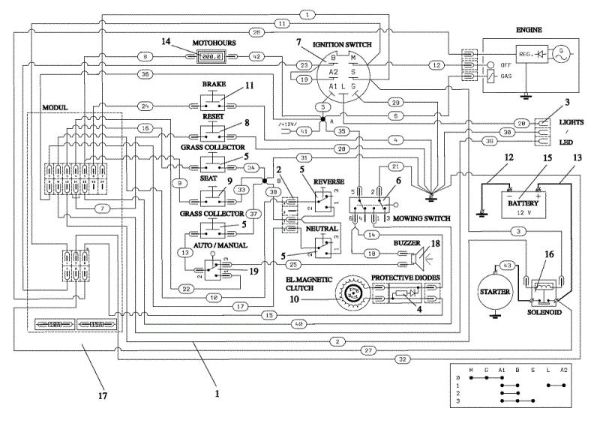

Electric diagram OM 106/24 KH (K2400AVD V-Twin - EURO5) Cat. 2021 Garden tractor

PrevDashboard OM 106/24 KH (K24...
NextEngine OM 106/24 KH (K2400A...

Electric diagram OM 106/24 KH (K2400AVD V-Twin - EURO5) Cat. 2021 Garden tractor

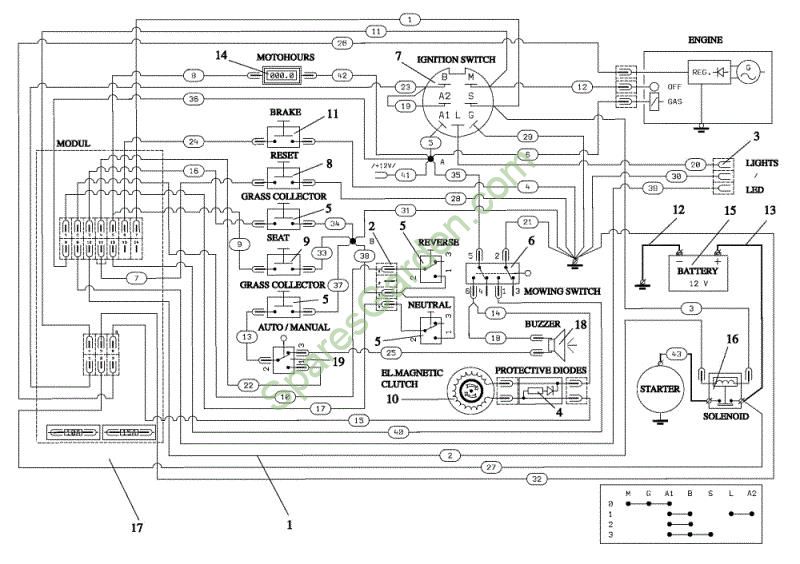

Garden tractors OM 106/24 KH (K2400AVD V-Twin - EURO5) Cat. 2021 Garden tractor Electric diagram Brand Oleo-Mac
Manufacturer: OLEOMAC
In case of spare parts order of OM 106/24 KH (K2400AVD V-Twin - EURO5) Cat. 2021 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of OM 106/24 KH (K2400AVD V-Twin - EURO5) Cat. 2021 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*
1 Wiring
Spare Part Wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€350.90 incl tax
+ -
2 Cable
Spare Part Cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.54 incl tax
+ -
3 Bulb
Spare Part Bulb Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€44.56 incl tax
+ -
4 Diode
Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.24 incl tax
+ -
5 Switch grassbag
Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4
€55.76 incl tax
+ -
6 Switch
Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€130.06 incl tax
+ -
7 Switch box
Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€71.57 incl tax
+ -
8 Switch
Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€43.02 incl tax
+ -
9 Micro-switch
Spare Part Micro-switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€41.24 incl tax
+ -
10 Clutch
Spare Part Clutch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€991.49 incl tax
+ -
11 Switch
Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€67.59 incl tax
+ -
12 Wire
Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 incl tax
+ -
13 Complete cable
Spare Part Complete cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€26.99 incl tax
+ -
14 Counter
Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€204.55 incl tax
+ -
15 Battery
Spare Part Battery Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€331.55 incl tax
+ -
16 Solenoid
Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€56.72 incl tax
+ -
17 Electric diagram
Spare Part Electric diagram Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€359.57 incl tax
+ -
18 Shoe
Spare Part Shoe Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.08 incl tax
+ -
