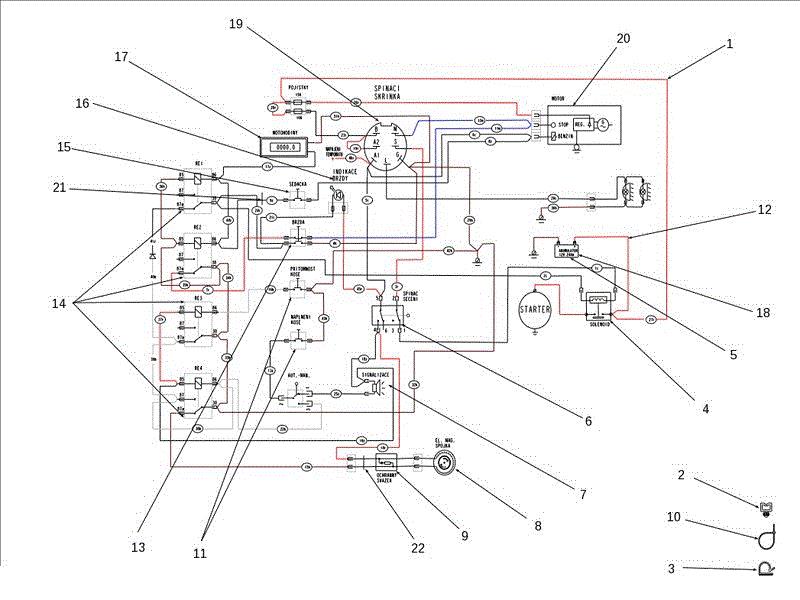

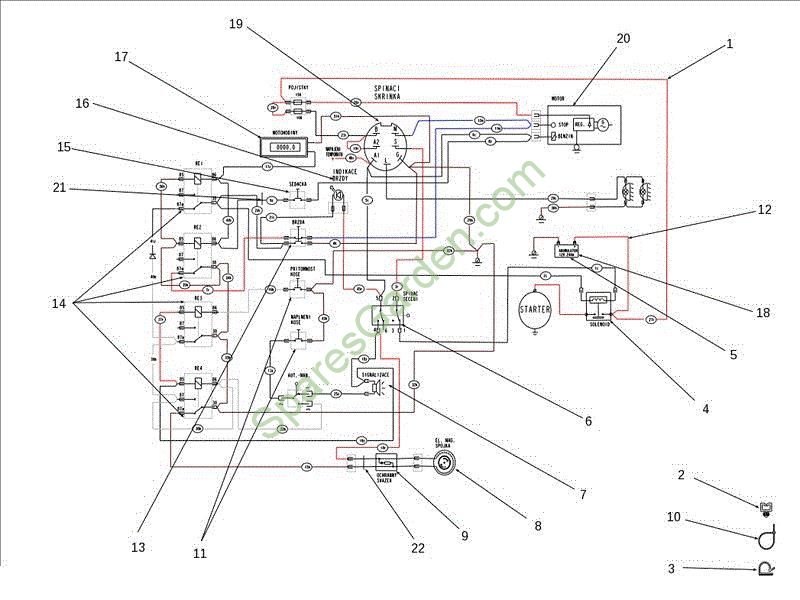

Electric diagram OM 124J/22 H Cat.2011 Garden tractor

Garden tractors OM 124J/22 H Cat.2011 Garden tractor Electric diagram Brand Oleo-Mac
Manufacturer: OLEOMAC

In case of ordering spare parts, if they are not immediately available in stock, the timeframe can extend up to 10-18 WORKING DAYS..

...in case of an order, please remember to write in the dedicated field THE SERIAL NUMBER OF YOUR MACHINE, THE YEAR OF PURCHASE, ETC. This helps our staff to identify the correct spare parts.

...If you fail to provide this information, we will be forced to apply a 20% penalty on the value of the spare part in the event of a refund or replacement request, and shipping costs will be charged.

In case of spare parts order of OM 124J/22 H Cat.2011 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
Trustpilot
In case of spare parts order of OM 124J/22 H Cat.2011 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*
1 Wiring
Spare Part Wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€527.77 incl tax
+ -
2 Cap
Spare Part Cap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 6
€20.02 incl tax
+ -
3 Mount
Spare Part Mount Electric diagram Garden tractors Brand Oleo-Mac
€3.46 incl tax
+ -
4 Solenoid
Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€56.72 incl tax
+ -
5 Wire
Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€11.37 incl tax
+ -
6 Switch
Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€65.73 incl tax
+ -
7 Shoe
Spare Part Shoe Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.08 incl tax
+ -
8 Clutch
Spare Part Clutch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€549.00 incl tax
+ -
9 Diode
Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.24 incl tax
+ -
10 Strap
Spare Part Strap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€0.63 incl tax
+ -
11 Switch grassbag
Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€55.76 incl tax
+ -
12 Wire
Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 incl tax
+ -
13 Switch
Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€67.59 incl tax
+ -
14 Starter relay
Spare Part Starter relay Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4
€27.09 incl tax
+ -
15 Micro-switch
Spare Part Micro-switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€41.24 incl tax
+ -
16 Warning light
Spare Part Warning light Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€36.43 incl tax
+ -
17 Counter
Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€163.64 incl tax
+ -
18 Wire
Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 incl tax
+ -
19 Switch box
Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€71.57 incl tax
+ -
20 Cable
Spare Part Cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€24.32 incl tax
+ -
22 Bushing
Spare Part Bushing Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€4.83 incl tax
+ -
