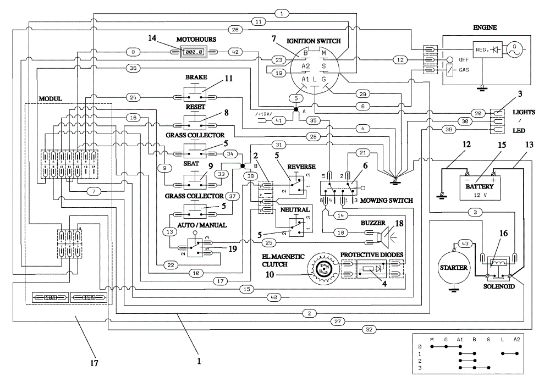

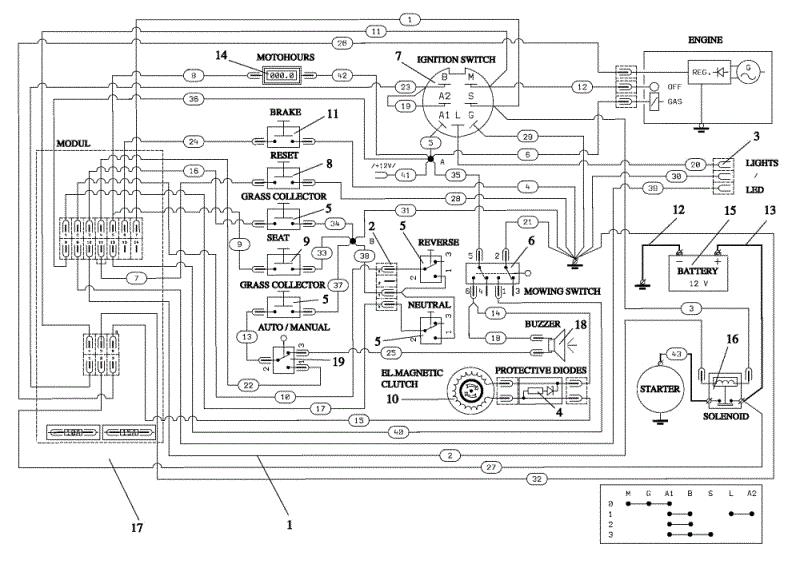

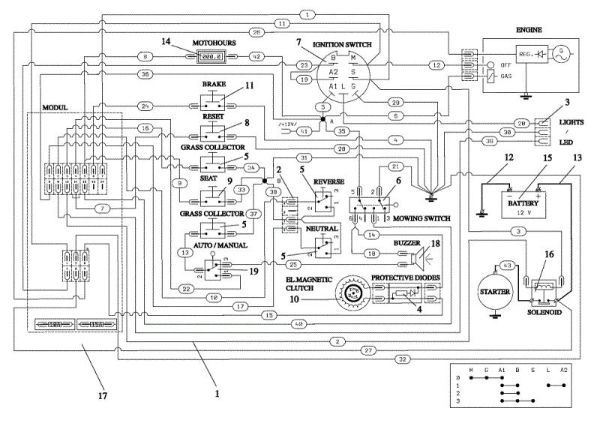

Electric diagram OM 92/16KH (K1600AVD) Cat. 2019 Garden tractor

Electric diagram OM 92/16KH (K1600AVD) Cat. 2019 Garden tractor

Garden tractors OM 92/16KH (K1600AVD) Cat. 2019 Garden tractor Electric diagram Brand Oleo-Mac
Manufacturer: OLEOMAC
In case of spare parts order of OM 92/16KH (K1600AVD) Cat. 2019 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of OM 92/16KH (K1600AVD) Cat. 2019 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Wiring

Spare Part Wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€350.90 incl tax

2 Cable

Spare Part Cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.54 incl tax

3 Bulb

Spare Part Bulb Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€44.56 incl tax

4 Diode

Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.24 incl tax

5 Switch grassbag

Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4
€55.76 incl tax

6 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€130.06 incl tax

7 Switch box

Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€71.57 incl tax

8 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€43.02 incl tax

9 Micro-switch

Spare Part Micro-switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€41.24 incl tax

10 Clutch

Spare Part Clutch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€991.49 incl tax

11 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€67.59 incl tax

12 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 incl tax

13 Complete cable

Spare Part Complete cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€26.99 incl tax

14 Counter

Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€204.55 incl tax

15 Battery

Spare Part Battery Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€331.55 incl tax

16 Solenoid

Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€56.72 incl tax

17 Electric diagram

Spare Part Electric diagram Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€359.57 incl tax

18 Shoe

Spare Part Shoe Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.08 incl tax
