Engine d. 43 mm HT 135

PrevDrive tube assembly HT 135
NextGear head HT 135

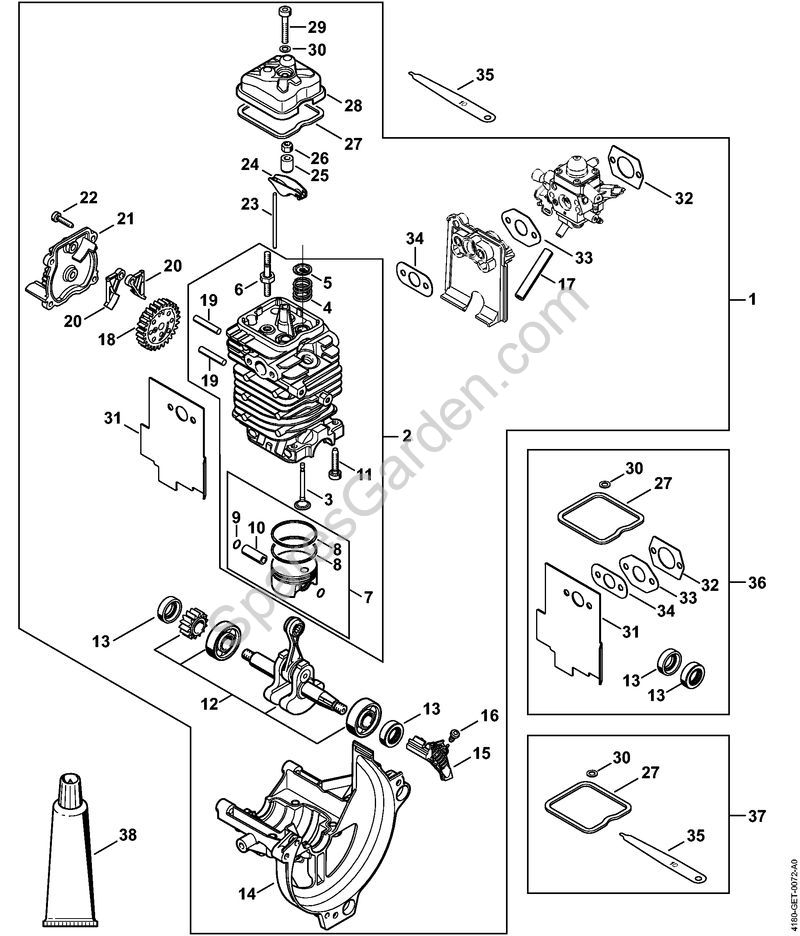

Engine d. 43 mm HT 135

Engine d. 43 mm Pole pruners (HT) HT 135 Stihl
Manufacturer: STIHL

In case of ordering spare parts, if they are not immediately available in stock, the timeframe can extend up to 10-18 WORKING DAYS..

...in case of an order, please remember to write in the dedicated field THE SERIAL NUMBER OF YOUR MACHINE, THE YEAR OF PURCHASE, ETC. This helps our staff to identify the correct spare parts.

...If you fail to provide this information, we will be forced to apply a 20% penalty on the value of the spare part in the event of a refund or replacement request, and shipping costs will be charged.

When ordering original spare parts for your product Pole pruners (HT) HT 135 of Stihl, to allow our staff to send you the correct spare parts,enter the year of the machine and, if available, its serial number in the Miscellaneous Notes field on the final page of the cart.

*
*
*
1 Engine diam. 43 mm
Original spare parts Engine diam. 43 mm Pole pruners (HT) HT 135 Stihl Included from nr. 2 to 34
€339.78 incl tax
+ -
2 Cylinder with piston diam. 43 mm
Original spare parts Cylinder with piston diam. 43 mm Pole pruners (HT) HT 135 Stihl Included from nr. 3 to 11
€198.08 incl tax
+ -
3 Valve
Original spare parts Valve Pole pruners (HT) HT 135 Stihl
€20.95 incl tax
+ -
4 Valve spring
Original spare parts Valve spring Pole pruners (HT) HT 135 Stihl
€4.39 incl tax
+ -
5 Spring retainer plate
Original spare parts Spring retainer plate Pole pruners (HT) HT 135 Stihl
€3.81 incl tax
+ -
6 Collar screw M5
Original spare parts Collar screw M5 Pole pruners (HT) HT 135 Stihl
€6.98 incl tax
+ -
7 Piston diam. 43 mm
Original spare parts Piston diam. 43 mm Pole pruners (HT) HT 135 Stihl Included from nr. 8 to 10
€120.06 incl tax
+ -
8 Piston ring diam. 43x1.2 mm
Original spare parts Piston ring diam. 43x1.2 mm Pole pruners (HT) HT 135 Stihl
€22.20 incl tax
+ -
9 Snap ring 9x0.8
Original spare parts Snap ring 9x0.8 Pole pruners (HT) HT 135 Stihl
€2.15 incl tax
+ -
10 Piston pin 9x5x26
Original spare parts Piston pin 9x5x26 Pole pruners (HT) HT 135 Stihl
€16.44 incl tax
+ -
11 Pan head self-tapping screw IS-D5x24
Original spare parts Pan head self-tapping screw IS-D5x24 Pole pruners (HT) HT 135 Stihl
€3.22 incl tax
+ -
12 Crankshaft
Original spare parts Crankshaft Pole pruners (HT) HT 135 Stihl
€245.47 incl tax
+ -
13 Oil seal 12x22x7
Original spare parts Oil seal 12x22x7 Pole pruners (HT) HT 135 Stihl
€11.74 incl tax
+ -
14 Engine pan
Original spare parts Engine pan Pole pruners (HT) HT 135 Stihl
€33.75 incl tax
+ -
15 Lead retainer
Original spare parts Lead retainer Pole pruners (HT) HT 135 Stihl
€10.44 incl tax
+ -
16 Pan head self-tapping screw IS-P4x10
Original spare parts Pan head self-tapping screw IS-P4x10 Pole pruners (HT) HT 135 Stihl
€2.68 incl tax
+ -
17 Impulse hose
Original spare parts Impulse hose Pole pruners (HT) HT 135 Stihl
€11.52 incl tax
+ -
18 Cam wheel
Original spare parts Cam wheel Pole pruners (HT) HT 135 Stihl
€15.62 incl tax
+ -
19 Pin 5x28
Original spare parts Pin 5x28 Pole pruners (HT) HT 135 Stihl
€8.49 incl tax
+ -
20 Cam follower
Original spare parts Cam follower Pole pruners (HT) HT 135 Stihl
€21.56 incl tax
+ -
21 Cover
Original spare parts Cover Pole pruners (HT) HT 135 Stihl
€16.93 incl tax
+ -
22 Pan head self-tapping screw IS-D4x18
Original spare parts Pan head self-tapping screw IS-D4x18 Pole pruners (HT) HT 135 Stihl
€2.68 incl tax
+ -
23 Pushrod
Original spare parts Pushrod Pole pruners (HT) HT 135 Stihl
€5.47 incl tax
+ -
24 Rocker arm
Original spare parts Rocker arm Pole pruners (HT) HT 135 Stihl
€7.76 incl tax
+ -
25 Sleeve
Original spare parts Sleeve Pole pruners (HT) HT 135 Stihl
€8.49 incl tax
+ -
26 Lock nut M5
Original spare parts Lock nut M5 Pole pruners (HT) HT 135 Stihl
€3.12 incl tax
+ -
27 Gasket
Original spare parts Gasket Pole pruners (HT) HT 135 Stihl
€4.68 incl tax
+ -
28 Valve cover
Original spare parts Valve cover Pole pruners (HT) HT 135 Stihl
€14.49 incl tax
+ -
29 Spline screw IS-M5x30
Original spare parts Spline screw IS-M5x30 Pole pruners (HT) HT 135 Stihl
€3.76 incl tax
+ -
30 Sealing ring 5x9x1
Original spare parts Sealing ring 5x9x1 Pole pruners (HT) HT 135 Stihl
€1.56 incl tax
+ -
31 Muffler gasket
Original spare parts Muffler gasket Pole pruners (HT) HT 135 Stihl
€13.15 incl tax
+ -
32 Gasket
Original spare parts Gasket Pole pruners (HT) HT 135 Stihl
€4.25 incl tax
+ -
33 Gasket
Original spare parts Gasket Pole pruners (HT) HT 135 Stihl
€6.10 incl tax
+ -
34 Gasket
Original spare parts Gasket Pole pruners (HT) HT 135 Stihl
€6.10 incl tax
+ -
35 Setting gauge
Original spare parts Setting gauge Pole pruners (HT) HT 135 Stihl
€1.81 incl tax
+ -
36 Set of gaskets
Original spare parts Set of gaskets Pole pruners (HT) HT 135 Stihl Included nr. 13, 27, 30 a 34
€22.84 incl tax
+ -
37 Valve clearance setting kit
Original spare parts Valve clearance setting kit Pole pruners (HT) HT 135 Stihl Included nr. 27, 30, 35
€3.22 incl tax
+ -
38 Sealant, Dirko HT red
Original spare parts Sealant, Dirko HT red Pole pruners (HT) HT 135 Stihl
€25.18 incl tax
+ -
