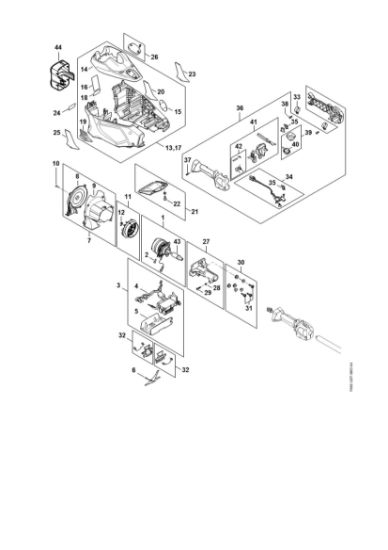

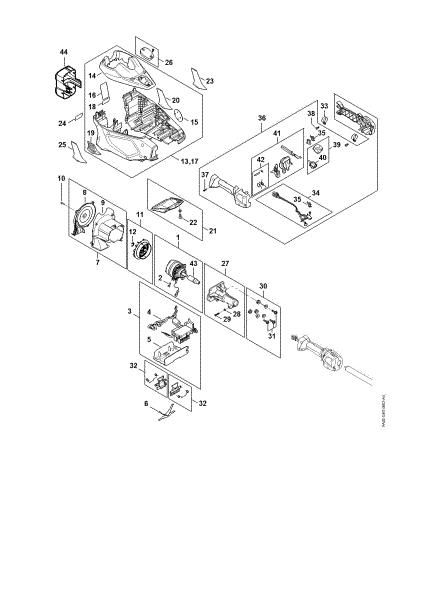

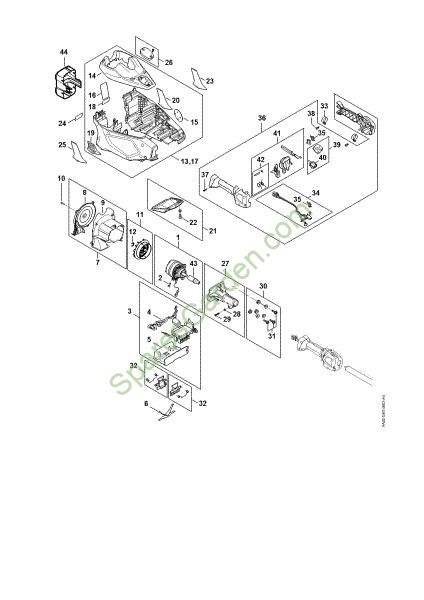

Electric motor, Motor housing, Control handle KMA 135 R

Electric motor, Motor housing, Control handle Cordless KombiEngines (KMA) KMA 135 R Stihl
Manufacturer: STIHL

When ordering original spare parts for your product Cordless KombiEngines (KMA) KMA 135 R of Stihl, to allow our staff to send you the correct spare parts,enter the year of the machine and, if available, its serial number in the Miscellaneous Notes field on the final page of the cart.

When ordering original spare parts for your product Cordless KombiEngines (KMA) KMA 135 R of Stihl, to allow our staff to send you the correct spare parts,enter the year of the machine and, if available, its serial number in the Miscellaneous Notes field on the final page of the cart.

*
*
*

1 Electric motor

Original spare parts Electric motor Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 2 and 43
€183.19 incl tax

2 Spline screw IS-M4x12

Original spare parts Spline screw IS-M4x12 Cordless KombiEngines (KMA) KMA 135 R Stihl
€2.68 incl tax

3 Electronic module

Original spare parts Electronic module Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 4 and 5
€213.36 incl tax

4 Electronic module

Original spare parts Electronic module Cordless KombiEngines (KMA) KMA 135 R Stihl
€202.24 incl tax

5 Contact plate

Original spare parts Contact plate Cordless KombiEngines (KMA) KMA 135 R Stihl
€26.41 incl tax

6 Spring

Original spare parts Spring Cordless KombiEngines (KMA) KMA 135 R Stihl
€7.86 incl tax

7 Spiral housing

Original spare parts Spiral housing Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 8 and 9
€26.54 incl tax

10 Pan head self-tapping screw IS-P4x16

Original spare parts Pan head self-tapping screw IS-P4x16 Cordless KombiEngines (KMA) KMA 135 R Stihl
€2.68 incl tax

11 Fan wheel

Original spare parts Fan wheel Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 12
€17.60 incl tax

12 E-clip 8

Original spare parts E-clip 8 Cordless KombiEngines (KMA) KMA 135 R Stihl
€1.07 incl tax

13 Motor housing

Original spare parts Motor housing Cordless KombiEngines (KMA) KMA 135 R Stihl Included from nr. 14 to 16
€126.27 incl tax

14 Shroud

Original spare parts Shroud Cordless KombiEngines (KMA) KMA 135 R Stihl
€33.23 incl tax

15 Model plate KMA 135

Original spare parts Model plate KMA 135 Cordless KombiEngines (KMA) KMA 135 R Stihl
€10.77 incl tax

16 Warning pictogram

Original spare parts Warning pictogram Cordless KombiEngines (KMA) KMA 135 R Stihl
€8.20 incl tax

21 Filter

Original spare parts Filter Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 22
€30.13 incl tax

22 Screw IS-M5x14

Original spare parts Screw IS-M5x14 Cordless KombiEngines (KMA) KMA 135 R Stihl
€2.68 incl tax

26 Cover

Original spare parts Cover Cordless KombiEngines (KMA) KMA 135 R Stihl
€10.77 incl tax

27 Flange

Original spare parts Flange Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 28 and 29
€50.07 incl tax

28 Washer 6.4

Original spare parts Washer 6.4 Cordless KombiEngines (KMA) KMA 135 R Stihl
€1.07 incl tax

29 Pan head self-tapping screw IS-D6x35

Original spare parts Pan head self-tapping screw IS-D6x35 Cordless KombiEngines (KMA) KMA 135 R Stihl
€4.34 incl tax

30 Screw kit

Original spare parts Screw kit Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 31
€23.45 incl tax

31 Screw

Original spare parts Screw Cordless KombiEngines (KMA) KMA 135 R Stihl
€4.44 incl tax

32 Trigger interlock

Original spare parts Trigger interlock Cordless KombiEngines (KMA) KMA 135 R Stihl
€11.19 incl tax

33 Clamp

Original spare parts Clamp Cordless KombiEngines (KMA) KMA 135 R Stihl
€14.44 incl tax

34 Wiring harness

Original spare parts Wiring harness Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 35
€35.98 incl tax

35 Switch

Original spare parts Switch Cordless KombiEngines (KMA) KMA 135 R Stihl
€9.18 incl tax

36 Control handle

Original spare parts Control handle Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. from 33 a 35, 37 a 42
€115.50 incl tax

37 Pan head screw IS P4x16

Original spare parts Pan head screw IS P4x16 Cordless KombiEngines (KMA) KMA 135 R Stihl
€2.68 incl tax

38 Spline screw IS-M5x12

Original spare parts Spline screw IS-M5x12 Cordless KombiEngines (KMA) KMA 135 R Stihl
€2.68 incl tax

39 Switch

Original spare parts Switch Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 40
€27.12 incl tax

40 Switch

Original spare parts Switch Cordless KombiEngines (KMA) KMA 135 R Stihl
€19.58 incl tax

41 Control lever kit

Original spare parts Control lever kit Cordless KombiEngines (KMA) KMA 135 R Stihl Included nr. 42
€20.13 incl tax

42 Set of mounting hardware

Original spare parts Set of mounting hardware Cordless KombiEngines (KMA) KMA 135 R Stihl
€10.54 incl tax

43 Carrier

Original spare parts Carrier Cordless KombiEngines (KMA) KMA 135 R Stihl
€18.70 incl tax
