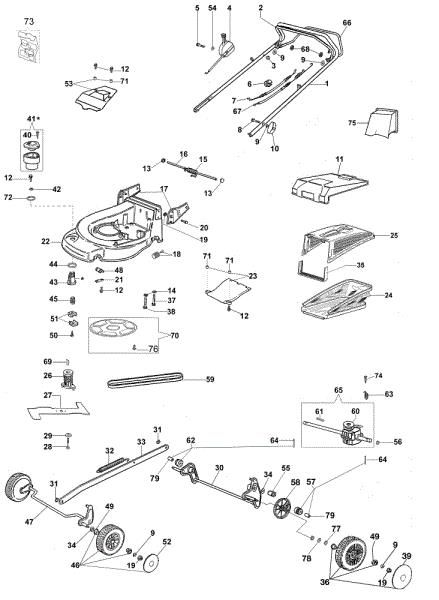

Illustrated parts list MAX 48 TK (K650) Lawnmower

Name: Illustrated parts list MAX 48 TK(K650)Lawnmower
Brand: OLEOMAC
SKU: 3717327
Availability: InStock
Rating: 5.0 (1 reviews)

Mowers MAX 48 TK (K650) Lawnmower Illustrated parts list Brand Oleo-Mac

Manufacturer: OLEOMAC

In case of spare parts order of MAX 48 TK (K650) Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p

Overview
Contact Us

Your name *

Your email *

Enquiry *

1 Handlebar

Spare Part Handlebar Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€69.94 incl tax

Qty:

2 Brake lever

Spare Part Brake lever Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€34.39 incl tax

Qty:

3 Nut

Spare Part Nut Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€0.88 incl tax

Qty:

4 Throttle

Spare Part Throttle Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€41.88 incl tax

Qty:

5 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€0.73 incl tax

Qty:

6 Band

Spare Part Band Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€7.86 incl tax

Qty:

7 Engine break cable

Spare Part Engine break cable Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€33.72 incl tax

Qty:

8 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€3.71 incl tax

Qty:

9 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4

€4.98 incl tax

Qty:

10 Tightening handle

Spare Part Tightening handle Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€8.25 incl tax

Qty:

11 Shutter

Spare Part Shutter Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€37.24 incl tax

Qty:

12 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac

€2.29 incl tax

Qty:

13 Clamp

Spare Part Clamp Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€3.71 incl tax

Qty:

14 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 3

€0.54 incl tax

Qty:

15 Spring

Spare Part Spring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€7.91 incl tax

Qty:

16 Deflector axle

Spare Part Deflector axle Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€11.37 incl tax

Qty:

17 Support set

Spare Part Support set Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€57.67 incl tax

Qty:

18 AV-mount

Spare Part AV-mount Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€30.27 incl tax

Qty:

19 Nut

Spare Part Nut Illustrated parts list Mowers Brand Oleo-Mac

€1.95 incl tax

Qty:

20 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4

€5.12 incl tax

Qty:

21 Plate

Spare Part Plate Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4

€7.42 incl tax

Qty:

22 Deck

Spare Part Deck Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€521.14 incl tax

Qty:

23 Cover

Spare Part Cover Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€23.47 incl tax

Qty:

24 Grassbag

Spare Part Grassbag Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€125.09 incl tax

Qty:

25 Frame

Spare Part Frame Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€69.57 incl tax

Qty:

26 Hub Ø22,2mm

Spare Part Hub Ø22-2mm Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€37.77 incl tax

Qty:

27 Mulching blade 48

Spare Part Mulching blade 48 Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€46.97 incl tax

Qty:

28 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€14.44 incl tax

Qty:

29 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€9.71 incl tax

Qty:

30 Compl. rear axle

Spare Part Compl. rear axle Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€129.66 incl tax

Qty:

31 Ring

Spare Part Ring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€1.81 incl tax

Qty:

32 Spring

Spare Part Spring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€25.62 incl tax

Qty:

33 Rod

Spare Part Rod Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€24.25 incl tax

Qty:

34 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€3.61 incl tax

Qty:

35 Support

Spare Part Support Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€12.78 incl tax

Qty:

36 Wheel kit Con copriruota grigio; With

Spare Part Wheel kit Con copriruota grigio; With Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€35.14 incl tax

Qty:

38 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€6.10 incl tax

Qty:

39 Wheel cover Grigio; Grey

Spare Part Wheel cover Grigio; Grey Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€14.01 incl tax

Qty:

39 Wheel cover Bianco; White

Spare Part Wheel cover Bianco; White Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€10.97 incl tax

Qty:

40 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€5.51 incl tax

Qty:

41 Knob kit

Spare Part Knob kit Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€16.77 incl tax

Qty:

42 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€10.78 incl tax

Qty:

43 Female thread

Spare Part Female thread Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€13.86 incl tax

Qty:

44 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€6.83 incl tax

Qty:

45 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€13.32 incl tax

Qty:

46 Wheel kit Con copriruota grigio; With

Spare Part Wheel kit Con copriruota grigio; With Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€32.87 incl tax

Qty:

48 Bushing

Spare Part Bushing Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€6.34 incl tax

Qty:

49 Bearing

Spare Part Bearing Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 8

€12.69 incl tax

Qty:

50 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€4.25 incl tax

Qty:

51 Hub with sheet

Spare Part Hub with sheet Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€22.44 incl tax

Qty:

52 Wheel cover Grigio; Grey

Spare Part Wheel cover Grigio; Grey Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€14.20 incl tax

Qty:

52 Wheel cover Bianco; White

Spare Part Wheel cover Bianco; White Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€11.41 incl tax

Qty:

53 Guard kit

Spare Part Guard kit Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€25.04 incl tax

Qty:

54 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€1.46 incl tax

Qty:

55 Bushing

Spare Part Bushing Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€9.27 incl tax

Qty:

56 Snap ring

Spare Part Snap ring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4

€2.24 incl tax

Qty:

57 Left sprocket SN 6245207451 BT5-080-05/15

Spare Part Left sprocket SN 6245207451 BT5-080-05/15 Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€26.20 incl tax

Qty:

58 Wheel cover

Spare Part Wheel cover Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€20.70 incl tax

Qty:

59 Belt Z 33 10x840 LI (PI BELT)

Spare Part Belt Z 33 10x840 LI (PI BELT) Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€24.66 incl tax

Qty:

60 Pulley

Spare Part Pulley Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€19.10 incl tax

Qty:

61 Plug

Spare Part Plug Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€4.93 incl tax

Qty:

62 Right sprocket SN 6245207451 BT5-080-05/15

Spare Part Right sprocket SN 6245207451 BT5-080-05/15 Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€26.20 incl tax

Qty:

63 Spring

Spare Part Spring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€15.82 incl tax

Qty:

64 Roller SN 6245207451 BT5-080-05/15

Spare Part Roller SN 6245207451 BT5-080-05/15 Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€4.10 incl tax

Qty:

64 Roller SN 6245207450 BT5-080-05/15

Spare Part Roller SN 6245207450 BT5-080-05/15 Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€3.61 incl tax

Qty:

65 Transmission

Spare Part Transmission Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€241.86 incl tax

Qty:

66 Traction lever

Spare Part Traction lever Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€26.18 incl tax

Qty:

67 Traction cable

Spare Part Traction cable Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€27.85 incl tax

Qty:

68 Ring

Spare Part Ring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€5.51 incl tax

Qty:

69 Key

Spare Part Key Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€3.71 incl tax

Qty:

70 Guard kit

Spare Part Guard kit Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€18.51 incl tax

Qty:

71 Spacer

Spare Part Spacer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 7

€2.93 incl tax

Qty:

72 Ring

Spare Part Ring Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€4.93 incl tax

Qty:

73 Labels kit

Spare Part Labels kit Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€16.12 incl tax

Qty:

74 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€6.10 incl tax

Qty:

75 Mulching cap

Spare Part Mulching cap Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1

€55.51 incl tax

Qty:

76 Screw

Spare Part Screw Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 3

€2.29 incl tax

Qty:

77 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€9.96 incl tax

Qty:

78 Washer

Spare Part Washer Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€3.17 incl tax

Qty:

79 Bushing SN 6245207451 BT5-080-05/15

Spare Part Bushing SN 6245207451 BT5-080-05/15 Illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2

€4.00 incl tax

Qty:
