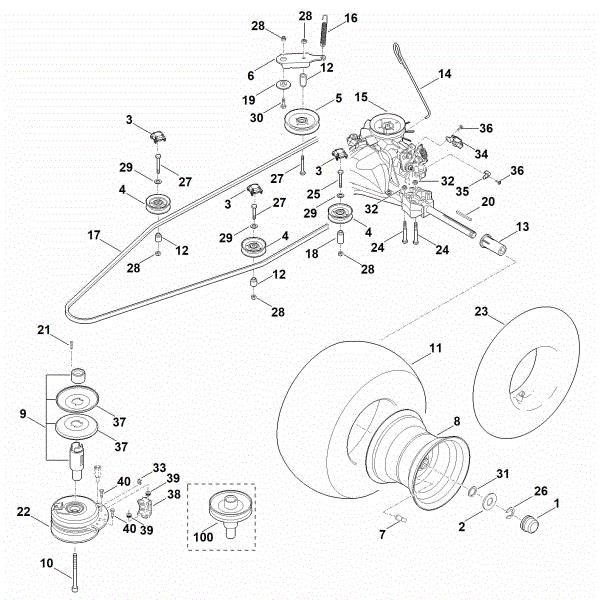

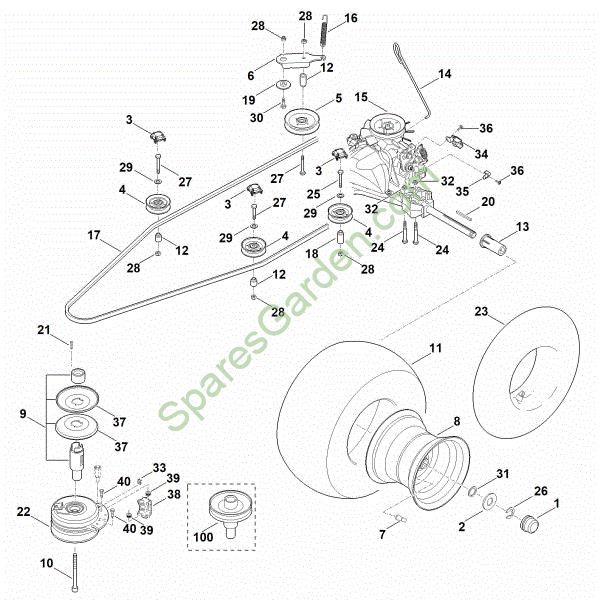

H - Gearbox, rear wheel, blade clutch MT 4097.1 S

Name: H - Gearbox,rear wheel,blade clutch MT 4097.1 S
Brand: VIKING
SKU: 967610
Availability: InStock
Rating: 5.0 (1 reviews)

H - Gearbox, rear wheel, blade clutch MT MT 4097.1 S brand Viking

Manufacturer: VIKING

When ordering original spare parts for your product MT MT 4097.1 S of Viking, to allow our staff to send you the correct spare parts,enter the year of the machine and, if available, its serial number in the Miscellaneous Notes field on the final page of the cart.

Overview
Contact Us

Your name *

Your email *

Enquiry *

Wheel assy. 18

Original spare parts Wheel assy. 18 MT MT 4097.1 S Viking Included nr. 7,8,11

€192.15 incl tax

Qty:

1 Cap

Original spare parts Cap MT MT 4097.1 S Viking

€13.86 incl tax

Qty:

2 Washer 42

Original spare parts Washer 42 MT MT 4097.1 S Viking

€9.33 incl tax

Qty:

3 Cover

Original spare parts Cover MT MT 4097.1 S Viking

€9.22 incl tax

Qty:

4 Conversion kit (idler wheel)

Original spare parts Conversion kit (idler wheel) MT MT 4097.1 S Viking

€60.50 incl tax

Qty:

5 Conversion kit (idler wheel and tension roller)

Original spare parts Conversion kit (idler wheel and tension roller) MT MT 4097.1 S Viking

€232.63 incl tax

Qty:

5 Idler pulley

Original spare parts Idler pulley MT MT 4097.1 S Viking

€38.91 incl tax

Qty:

6 Bolt lever

Original spare parts Bolt lever MT MT 4097.1 S Viking

€25.91 incl tax

Qty:

7 Valve

Original spare parts Valve MT MT 4097.1 S Viking

€19.09 incl tax

Qty:

8 Rim 8,5-8

Original spare parts Rim 8,5-8 MT MT 4097.1 S Viking

€125.00 incl tax

Qty:

9 V-belt pulley assy.

Original spare parts V-belt pulley assy. MT MT 4097.1 S Viking Included nr. 37

€132.10 incl tax

Qty:

10 Pan head screw 7/16x4,5

Original spare parts Pan head screw 7/16x4,5 MT MT 4097.1 S Viking

€9.82 incl tax

Qty:

11 Tyre 18x8,5-8

Original spare parts Tyre 18x8,5-8 MT MT 4097.1 S Viking

€139.08 incl tax

Qty:

12 Distance sleeve

Original spare parts Distance sleeve MT MT 4097.1 S Viking

€20.19 incl tax

Qty:

13 Distance sleeve

Original spare parts Distance sleeve MT MT 4097.1 S Viking

€18.30 incl tax

Qty:

14 Lever

Original spare parts Lever MT MT 4097.1 S Viking

€29.33 incl tax

Qty:

15 Gear box T2-CHBF-2X3C-17X1

Original spare parts Gear box T2-CHBF-2X3C-17X1 MT MT 4097.1 S Viking

€1219.72 incl tax

Qty:

16 Tension spring

Original spare parts Tension spring MT MT 4097.1 S Viking

€10.98 incl tax

Qty:

17 V-belt

Original spare parts V-belt MT MT 4097.1 S Viking

€80.14 incl tax

Qty:

18 Distance sleeve

Original spare parts Distance sleeve MT MT 4097.1 S Viking

€9.91 incl tax

Qty:

19 Collar bearing

Original spare parts Collar bearing MT MT 4097.1 S Viking

€11.13 incl tax

Qty:

20 Key 3/16SQx21/4

Original spare parts Key 3/16SQx21/4 MT MT 4097.1 S Viking

€9.76 incl tax

Qty:

21 Key B1/4SQx1

Original spare parts Key B1/4SQx1 MT MT 4097.1 S Viking

€9.17 incl tax

Qty:

22 Blade clutch

Original spare parts Blade clutch MT MT 4097.1 S Viking Included from nr. 38 to 40

€281.59 incl tax

Qty:

23 Hose 20x10,0 - 8

Original spare parts Hose 20x10,0 - 8 MT MT 4097.1 S Viking

€57.57 incl tax

Qty:

24 Hexagon head screw M8x65

Original spare parts Hexagon head screw M8x65 MT MT 4097.1 S Viking

€7.56 incl tax

Qty:

25 Hexagon head screw M8x40

Original spare parts Hexagon head screw M8x40 MT MT 4097.1 S Viking

€5.42 incl tax

Qty:

26 E-clip 15

Original spare parts E-clip 15 MT MT 4097.1 S Viking

€1.66 incl tax

Qty:

27 Hexagon head screw M8x55

Original spare parts Hexagon head screw M8x55 MT MT 4097.1 S Viking

€7.03 incl tax

Qty:

28 Hexagon nut M8

Original spare parts Hexagon nut M8 MT MT 4097.1 S Viking

€2.29 incl tax

Qty:

29 Washer 8,4

Original spare parts Washer 8,4 MT MT 4097.1 S Viking

€1.12 incl tax

Qty:

30 Hexagon head screw M8x25

Original spare parts Hexagon head screw M8x25 MT MT 4097.1 S Viking

€4.34 incl tax

Qty:

31 Washer 19x26x1,5

Original spare parts Washer 19x26x1,5 MT MT 4097.1 S Viking

€2.20 incl tax

Qty:

32 Hexagon nut M8

Original spare parts Hexagon nut M8 MT MT 4097.1 S Viking

€2.88 incl tax

Qty:

33 Clip

Original spare parts Clip MT MT 4097.1 S Viking

€7.37 incl tax

Qty:

34 Support

Original spare parts Support MT MT 4097.1 S Viking

€14.15 incl tax

Qty:

35 Angle piece

Original spare parts Angle piece MT MT 4097.1 S Viking

€5.47 incl tax

Qty:

36 Self-tapping screw M5x10

Original spare parts Self-tapping screw M5x10 MT MT 4097.1 S Viking

€2.68 incl tax

Qty:

37 V-belt pulley

Original spare parts V-belt pulley MT MT 4097.1 S Viking

€80.81 incl tax

Qty:

38 Repair kit (brake lining)

Original spare parts Repair kit (brake lining) MT MT 4097.1 S Viking

€78.16 incl tax

Qty:
